Crown 5-1/4" - 20

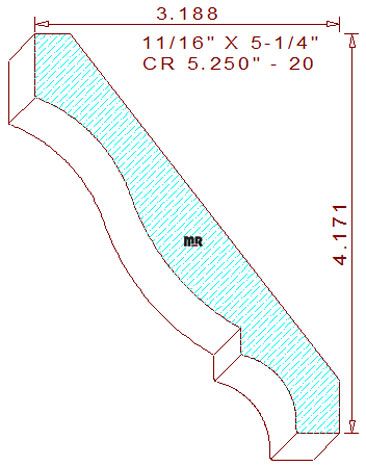

This 5-1/4" - 20 crown mould measures 5.250" wide by .687" thickness. The classic terminating profile comprises a cyma recta flanked by two vertical fillets in the upper portion and a cavetto with an attached horizontal fillet at the bottom. With the spring angles fixed at thirty-eight and fifty-two degrees, the installed height becomes 4-11/64" tall with a 3-3/16" wide projection. Two points of the design were purposely positioned on the same level plane, creating excellent hold-down conditions for the machinery while milling the pattern.
