Crown 5-1/4" - 14
Crown 5-1/4" - 14

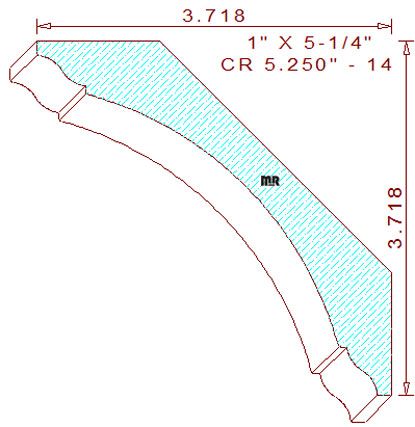

This symmetrical 5-1/4" - 14 crown mould measures 5.250" wide by 1.000" thickness. The profile is composed of two ogee portions, one at the top of the design and the other on the bottom. They are attached by a 3-3/4" radius cavetto in the center. When installed, the height and projection have identical dimensions at 3-23/32" tall and wide, with the spring angles fixed at forty-five degrees. The points of the design are positioned on the same level plane to aid in holding down the product while milling the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.908
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.908
Top Cutter Head
Width: 5.250
Depth of Cut: 0.563
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.25
(Template not needed)
