Crown 5-7/32" - 9

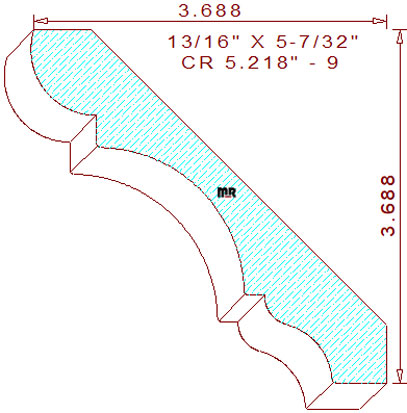

This notable 5-7/32" - 9 crown mould measures 5.214" wide by .812" thickness, permitting the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The elegant supporting profile is composed of an 11/16" radius convex arc on the top left, connected to an 11/32" vertical fillet and a 1-17/32" concave semicircular arc with a 7/32" flat line in the center, merged with a two tangent radius cyma reversa and a 9/16" flat line on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to setting the positioned height at 3-11/16" tall with a projection of 3-11/16" across the top.
