Crown 5-7/32" - 7

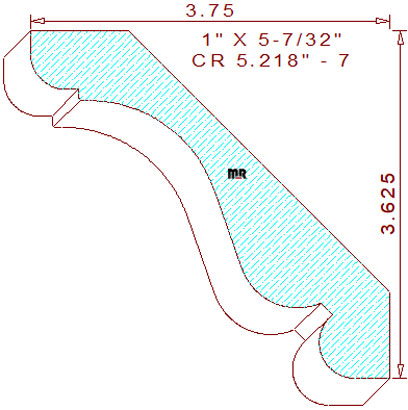

This beautifully lavish 5-7/32" - 7 crown mould measures 5.215" wide by 1.000" thickness, enabling the pattern to be machined sprung (laying horizontally flat) out of five-quarter lumber. The intricate terminating profile is comprised of a 3/8" radius quarter round tangent to a vertical line on the top left, attached to a 1/8" vertical fillet that merges with a free-flowing two tangent radius cyma recta in the center, connected to an 11/64" wide sunk fillet joined to a 47/64" tall bullnose on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3-5/8" tall with a projection of 3-3/4" across the top.
