Crown 5-7/32" - 4

Crown 5-7/32" - 4

Crown 5-7/32" - 4

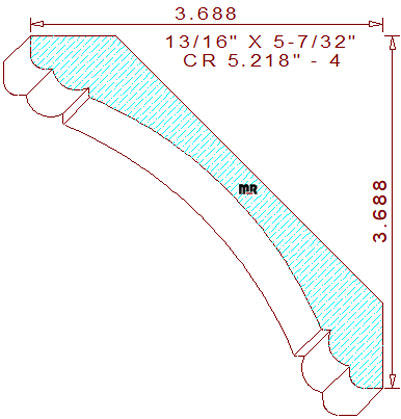

This distinguished 5-7/32" - 4 crown mould measures 5.215" wide by .813" thickness, permitting milling out of four-quarter lumber. The fancy symmetrical profile is composed of a 4-1/2" radius concave semicircle in the center, flanked by an inset 3/8" wide half round bead and a 5/32" radius quarter round arc on both the top and bottom of the design. The spring angles are at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3-11/16" tall with a projection of 3-11/16" across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.632
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.632
Top Cutter Head
Width: 5.250
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$355.00
Not Needed
Total:
$664.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$379.00
Not Needed
Total:
$707.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$195.00
$152.00
(Template not needed)
$403.00
Not Needed
Total:
$750.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
