Crown 5-7/32" - 1

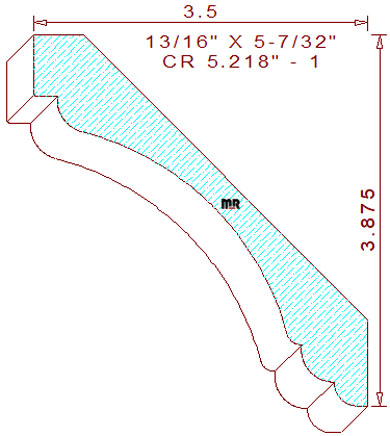

This creative 5-7/32" - 1 crown mould measures 5.215" wide by .812" thickness, enabling the pattern to be machined sprung (laying horizontally flat) from four-quarter lumber. The graceful supporting profile is composed of a 41/64" tall by 1/4" broad perpendicular lines on the top left, connected to a 23/64" convex arc tangent to a three-inch concave semicircle that transitions into a 9/64 convex bead forming the cyma reversa in the center, attached to a 21/32 half round that connects to a 1/4" quarter circle on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3-7/8" tall with a projection of 3-1/2" across the top. We offer an alternative profile with some similar design features within the profile for your review and consideration, crown 5.187" - 6.
