Crown 5-3/16" - 3

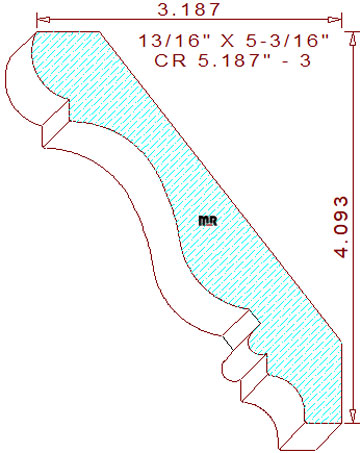

This charismatic 5-3/16" - 3 crown mould measures 5.187" wide by .812" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The captivating supporting profile comprises a 1/2" radius semicircular arc joined to a 15/64" tall vertical fillet on the top left, attached to a 1-1/64" concave curve tangent to two smooth transitioning convex arc's creating the elegant cyma recta in the center, connected to a 3/16" wide fifty-two degree sunk fillet and a teardrop-shaped bead, merged with a 7/32" vertical fillet and a 25/64" cove with a 25/64" flat line on the bottom right side of the design. The fixed spring angles are at thirty-eight and fifty-two degrees, these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 4-3/32" tall with a projection of 3-3/16" across the top.
