Crown 5-3/16" - 16

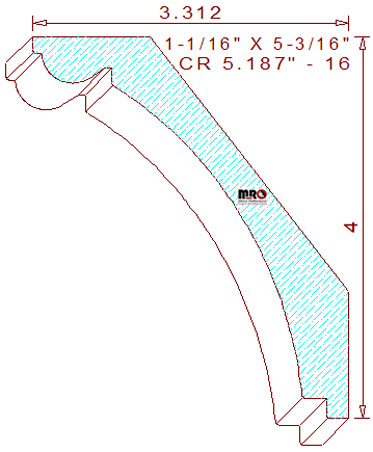

This stunning 5-3/16" - 16 crown mould measures 5.191" width by 1.062" thickness, necessitating a 5-7/16" wide blank of five-quarter lumber for milling on an industrial moulder. The creative profile comprises 3/16" tall by 3/32" wide perpendicular lines connected to a 21/32" broad half-circle with a 5/64" wide by 3/16" deep sunk fillet on the top left. The vertical line attaches to a two tangent radius concave semicircle in the center; merged with a 1/4" wide by 7/32" tall notch and a 1/4" flat line on the design's bottom right corner. The fixed spring angles are at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to locking in the height at 4" tall with a 3-5/16" projection across the top.
