Crown 5-1/8" - 4
Crown 5-1/8" - 4

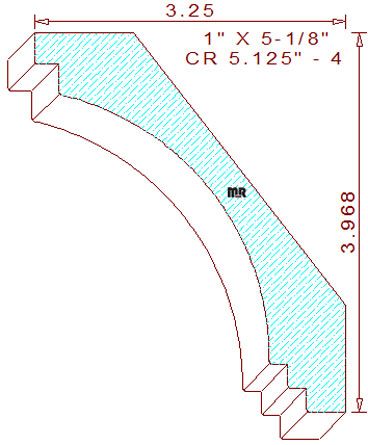

This concave 5-1/8" - 4 crown mould measures 5.125" wide by 1.000" thickness. The profile is comprised of a 2-53/64" radius cove/cavetto flanked by a single notched fillet in the upper portion and a double notched fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degree which sets the installed at 3-31/32" tall with a projection of 3-1/4" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.815
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.692
Top Cutter Head
Width: 5.125
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
