Crown 5" - 7

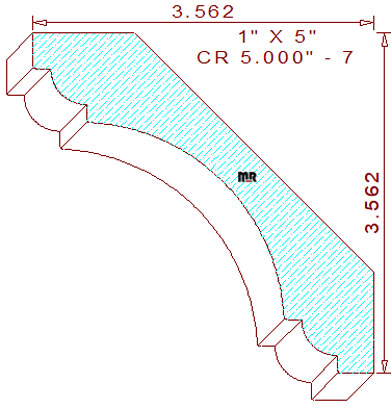

This symmetrical 5" - 7 crown mould measures 5.037" width by 1.000" thickness, allowing a 5-1/4" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The elegant terminating profile is prevalent in New England homes. The pattern comprises a 2-5/32" radius convex arc in the center. The middle is flanked by an ovolo consisting of a 3/8" convex bead bordered by a 3/16" tall and wide fillet with 3/8" line segments on both the top left and bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed. These specific angles lock in the height at 3-9/16" tall with a 3-9/16" projection across the top.
