Crown 5" - 41

Crown 5" - 41

Crown 5" - 41

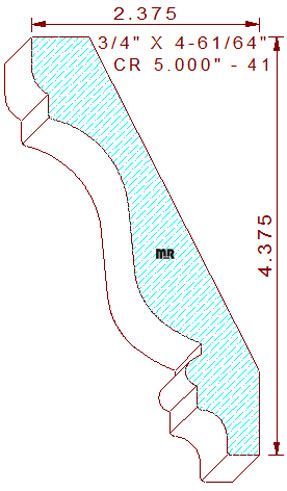

This beautiful 5" - 41 crown mould measures 4.953" wide by .750" thickness. The profile is defined by the cyma recta with a quarter round bead and vertical fillet on top, the bottom retains a half round torus flanked by two fillets and a covetto positioned at the bottom. When installed the height becomes 4-3/8" tall with a projection of 2-3/8" wide, the spring angles are fixed at twenty-seven and sixty-three degrees with two even points positioned on the same plane to create superior hold down conditions while milling the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.583
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.402
Top Cutter Head
Width: 5.000
Depth of Cut: 0.438
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$143.00
$143.00
$330.50
Not Needed
Total:
$616.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.00
$151.00
$353.50
Not Needed
Total:
$655.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.00
$159.00
$376.50
Not Needed
Total:
$694.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
