Crown 5" - 29

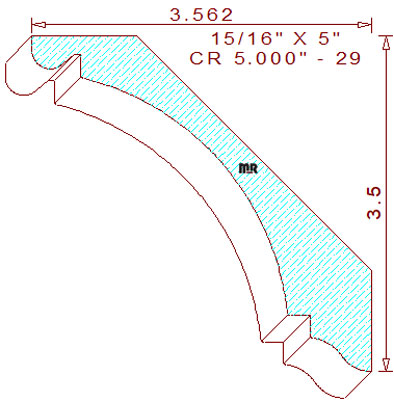

This fine-looking 5" - 29 crown mould measures 5.000" wide by .937" thickness, requiring five-quarter lumber to mill this pattern on an industrial moulder. The creative design is comprised of a 3/16" radius half-round circle attached to a 1/16" wide by 1/4" deep sunk fillet on top, connected to a 2-27/32" cavetto in the center with a 1/4" by 1/4" notch, joined to a two tangent radius cyma recta at the bottom that would mount against a crown backer when installed. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-1/2" tall with a projection of 3-9/16" wide.
