Crown 5" - 28
Crown 5" - 28

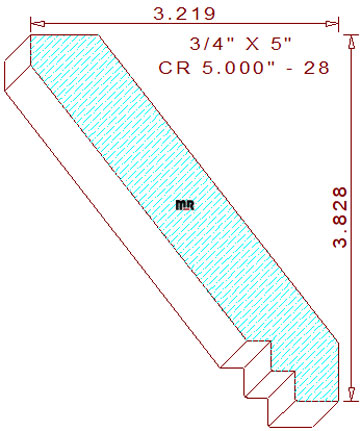

This shaker-style 5" - 28 crown mould measures 5.000" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The stepped profile is composed of a 5/16" tall vertical line at the top, connected to a 3-43/64" angled line in the center that transitions into two 5/16" tall by 1/4" wide notches with a 15/32" wide horizontal line segment on the bottom of the design. The spring angles are fixed at
thirty-eight and
fifty-two degrees, these specific back bevels set the installed height at 3-53/64" tall with a projection of 3-7/32" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.558
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.374
Top Cutter Head
Width: 5.000
Depth of Cut: 0.466
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
