Crown 5" - 27
Crown 5" - 27

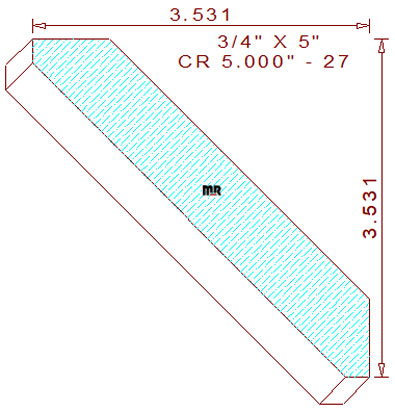

This mission-style 5" - 27 crown mould measures 5.000" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The contemporary profile comprises a 4-41/64" splayed face in the center. The beveled line is flanked by a 1/4" tall and a 1/4" broad segment at the top and bottom of the pattern. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 3-17/32" tall and wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.573
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.573
Top Cutter Head
Width: 5.000
Depth of Cut: 0.270
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
