Crown 5" - 25
Crown 5" - 25

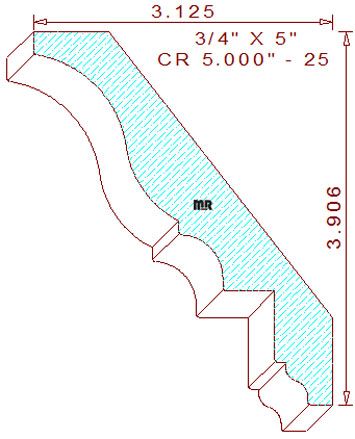

This beautiful 5" - 25 crown mould measures 5.000" wide by .750" thickness. The profile comprises a standard crown design in the upper portion attached to a vertical fillet and a small cyma reversa at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 3-29/32" tall with a 3-1/8" wide projection. Four high points in the design are intentionally positioned on the same level plane creating excellent hold down conditions while milling the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.617
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.559
Top Cutter Head
Width: 5.000
Depth of Cut: 0.437
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
