Crown 5" - 21

Crown 5" - 21

Crown 5" - 21

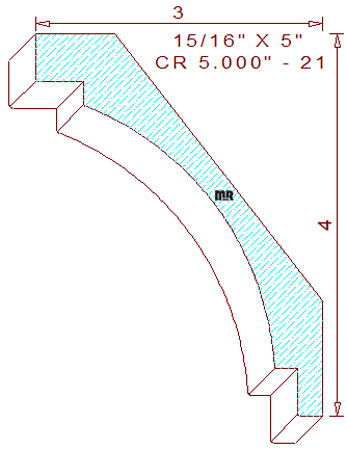

This concave 5" - 21 crown mould measures 5.000" wide by .938" thickness. The stylish profile is composed of a 3-1/8" radius cove attached to a 1/2" wide by 1/4" tall, notched fillet with a 1/2" tall vertical line on top, and a 1/2" tall by 1/4" wide notched fillet with a 1/4" horizontal segment at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these devoted back bevels set the installed height at 4" tall with a projection of 3" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.648
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.747
Top Cutter Head
Width: 5.000
Depth of Cut: 0.668
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$365.00
Not Needed
Total:
$717.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$388.00
Not Needed
Total:
$759.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$195.00
$195.00
$411.00
Not Needed
Total:
$801.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
