Crown 4-13/16" - 5
Crown 4-13/16" - 5

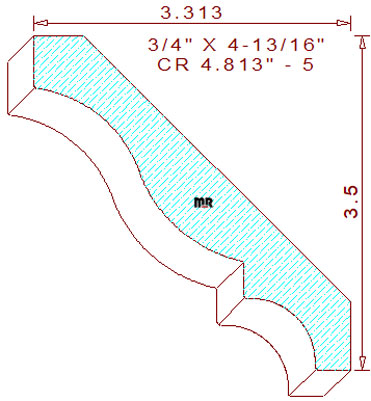

This standard 4-13/16" - 5 crown mould measures 4.818" width by .750" thickness, permitting a 5-1/16" blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The traditional terminating profile contains a 9/16" vertical line on the top left. That line connects to a 1-1-21/64" concave semicircle tangent to a 1-1/2" convex arc, forming the beautiful cyma recta in the center. The curvature joins to a 3/8" tall line attached to an11/32" cove with a 3/8" broad flat line on the design's bottom right corner. The spring angles are at
forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angles lock the height at 3-1/2" tall with a 3-5/16" projection across the top.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.372
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.504
Top Cutter Head
Width: 4.813
Depth of Cut: 0.471
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$123.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$133.00
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.50
(Template not needed)
