Crown 4-13/16" - 4

Crown 4-13/16" - 4

Crown 4-13/16" - 4

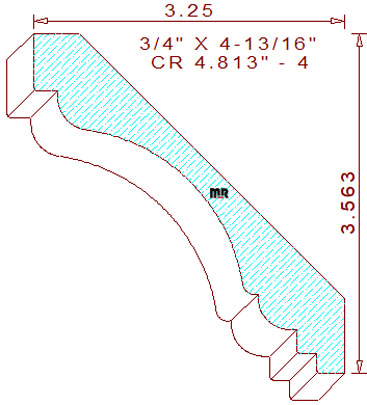

This compelling 4-13/16" - 4 crown mould measures 4.818" width by .750" thickness, requiring a 5-1/16" blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The fancy terminating profile comprises 39/64" tall by 1/4" perpendicular lines on the top left. The squared lines connect to a 1-15/16" radius cove tangent to an 11/32" convex arc above and a 1/8" below the center. The remaining section retains a 3/8" quarter-round bead merged with two sets of small right-angle lines on the bottom right corner. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 3-9/16" tall with a 3-1/4" projection across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.337
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.559
Top Cutter Head
Width: 4.813
Depth of Cut: 0.469
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$332.28
Not Needed
Total:
$622.28
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$354.53
Not Needed
Total:
$663.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$376.78
Not Needed
Total:
$704.78
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
