Crown 4-3/4" - 3

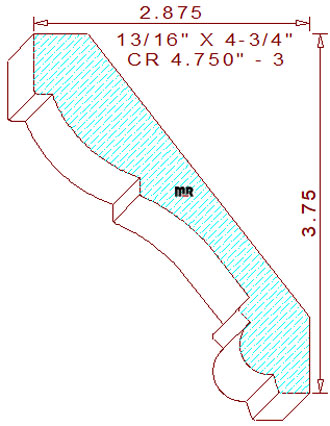

This compelling 4-3/4" - 3 crown mould measures 4.725" wide by .812" thickness, authorizing the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The enthralling supporting profile is composed of a 5/8" tall by 3/16" broad perpendicular lines on the top left. It's joined to a 1-1/2" radius ovolo and a 3/16" vertical line segment, merged with a shallow two-inch radius cove tangent off of a short angled line in the center, connected to two short line segments that come to a ninety-degree point with a decorative 19/32" half round bead, attached to a 5/16" wide obtuse section at the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3-3/4" tall with a projection of 2-7/8" wide.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking, and a former Weinig field service technician.
