Crown 4-3/4" - 25

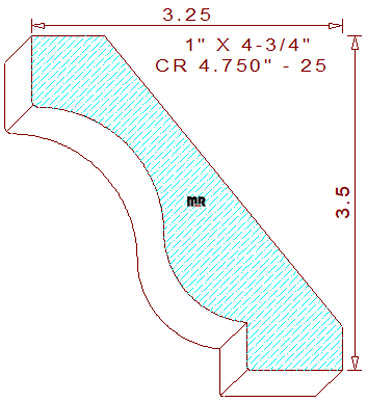

This customary 4-3/4" - 25 crown mould measures 4.765" wide by 1.000" thickness, necessitating the use of five-quarter lumber to be machined sprung (laying horizontally flat) on an industrial moulder. The conventional terminating profile is comprised of a 3/4" vertical line on the top left, connected to a beautiful two tangent radius cyma recta in the center, merged with a one inch wide by 1/2" tall perpendicular lines on the bottom right side of the design. The spring angles are fixed at thirty-nine and fifty-one degrees to obtain two even hold-down points when milling and the desired height and projection in the above image. The installed height becomes 3-1/2" tall with a projection of 3-1/4" wide. These template & knife designs are included in the downloadable dxf file below.

All CAD (computer-aided design) files contain important machine setup and profile grinding information all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's marvelous architectural details, one astonishingly gorgeous profile at a time.
