Crown 4-3/4" - 24

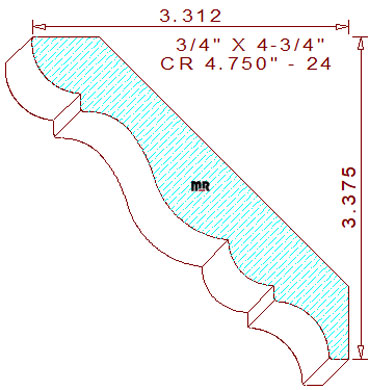

This glamorous 4-3/4" - 24 crown mould measures 4.728" wide by .750" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The beautiful supporting profile is composed of a 17/32" quarter circle with a 3/16" vertical line on the top left, joined to a free-flowing three tangent radius cyma recta and a 15/32" convex semicircular arc in the center, merged with a 5/32" vertical line and a 19/32" cove with a 3/16" flat area on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner portions of the profile parallel to the wall and ceiling when installed, they also set the positioned height at 3-3/8" tall, with a projection of 3-5/16" wide.

Increase search efficiency while looking over 15,000 profile designs in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.
