Crown 4-3/4" - 16

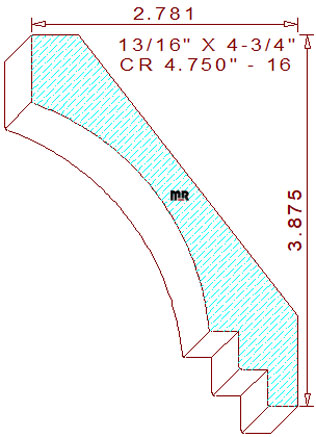

This attractive 4-3/4" - 16 crown mould measures 4.766" wide by .812" thickness, authorizing the pattern to be milled out of four-quarter lumber. The lovely concave terminating profile is composed of an 11/16" tall vertical line on the top left, attached to a 2-49/64" concave semicircular arc in the center, merged with a series of four perpendicular lines that create three 5/16" wide steps on the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner section of the profile parallel to the wall and ceiling as well as set the installed height at 3-7/8" tall with a projection of 2-25/32" wide.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,500 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.
