Crown 4-3/4" - 15
Crown 4-3/4" - 15

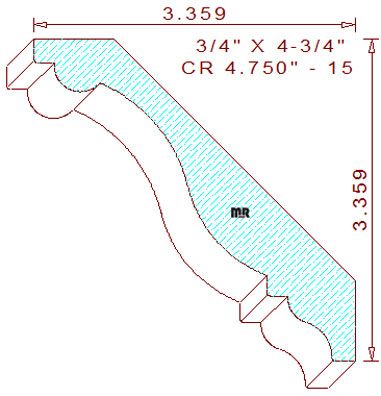

This attractive 4-3/4" - 15 crown mould measures 4.750" wide by .750" thickness. The profile comprises a cyma recta in the middle flanked by a half circle with a squared fillet on top, a stepped fillet, and cyma reversa positioned on the bottom. With the spring angles fixed at forty-five degrees, the installed height and projection become 3-23/64" tall and wide. These specific spring angles also enabled three even hold-down points in the design to be positioned on the same level plane, which becomes a real asset while milling.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.592
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.592
Top Cutter Head
Width: 4.750
Depth of Cut: 0.437
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
