Crown 4-23/32" - 2

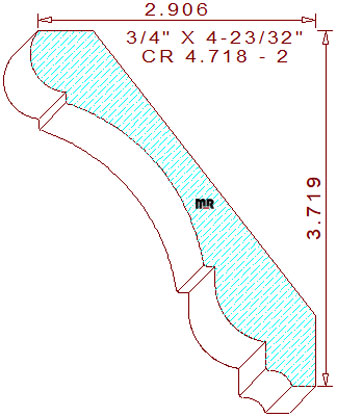

This distinguished 4-23/32" - 2 crown mould measures 4.719" width by .750" thickness, allowing the use of four quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The custom supporting profile contains a 41/64" tall bullnose joined to a 1/8" vertical fillet on the top left. The tall line segment merges with a 2-1/8" cavetto and a 1/8" horizontal fillet in the center, joined to a 5/8" ovolo and a 7/32" cove with a 17/64" flat line on the bottom right side of the detail. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-23/32" tall with a projection of 2-29/32" across the top.
