Crown 4-11/16" - 11

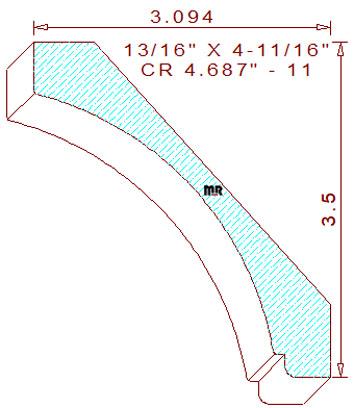

This cove-style 4-11/16" - 11 crown mould measures 4.672" width by .812" thickness, allowing a 4-15/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. This elegant terminating profile comprises a 17/32" vertical line segment on the top left. The line connects to a 3-23/64" radius cove in the center, joined to a 1/8" horizontal fillet with a 15/64" tall by 15/32" broad perpendicular lines on the design's bottom right side. The fixed spring angles are set at forty-two and forty-eight degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-1/2" tall with a 3-3/32" projection across the top.
