Crown 4-11/16" - 1

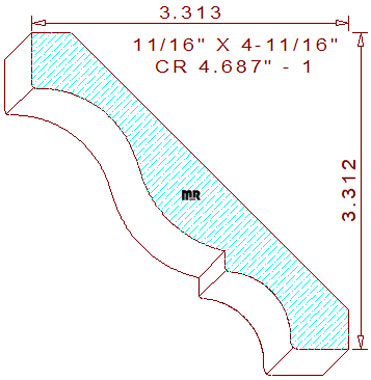

This classic 4-11/16" - 1colonial crown mould measures 4.687" wide by .687" thickness, allowing the detail to be milled sprung (laying horizontally flat) from four-quarter lumber. The common profile is composed of a 19/32" tall vertical line at the top, connected to a 1-1/16" concave semicircle tangent off of a 1-3/16" convex arc creating the cyma recta in the center, attached to a 7/32" tall vertical line segment with an 11/16" cove and a 5/8" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 3-5/16" tall and wide.
