Crown 4-5/8" - 6
Crown 4-5/8" - 6

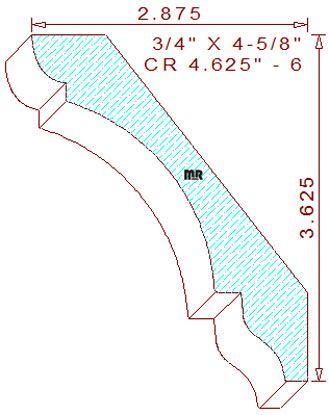

This beautiful 4-5/8" - 6 crown mould measures 4.625" wide by .750" thickness. The profile is comprised of a large 2-3/16" radius cavetto in the center that is flanked by a quarter round bead with an attached vertical fillet on top and a horizontal fillet with a connected ogee detail at the bottom. When installed the height becomes 3-5/8" tall with a projection of 2 7/8" wide, the spring angles are fixed at thirty-eight and fifty two degree. Three design points are positioned on the same level plane, creating superior hold-down conditions while milling the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.609
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.573
Top Cutter Head
Width: 4.625
Depth of Cut: 0.392
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
