Crown 4-5/8" - 18
Crown 4-5/8" - 18

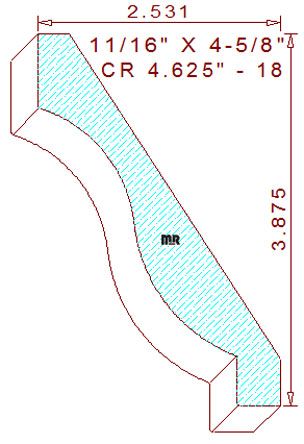

This wavy 4-5/8" - 18 crown mould measures 4.625" wide by .687" thickness. The profile consists of a 3/4" wide fillet on top, a sizeable French curve in the center, and a squared bottom, installed height equals 3-7/8" tall with a projection of 2-17/32" wide, the spring angles are set at thirty-three and fifty-seven degrees, they are all included in the downloadable dxf file.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.276
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.264
Top Cutter Head
Width: 4.625
Depth of Cut: 0.533
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
