Crown 4-5/8" - 17

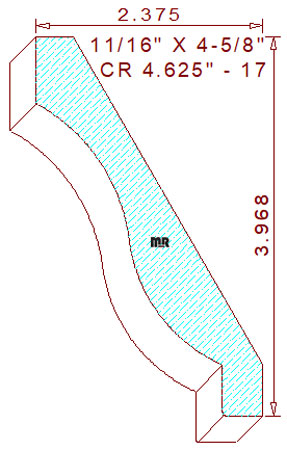

This 4-5/8" - 17 cyma crown mould measures 4.625" wide by .687" thickness. The profile is comprised of a 1-7/8" radius concave arc tangent off of a 1-11/16" radius convex arc that creates the cyma recta, attached to a 23/32" tall vertical fillet on top. The lower portion of the detail consists of a 17/32" tall vertical fillet joined to a 21/64" broad line at the bottom of the pattern. The spring angles are set at thirty and sixty degrees; search our bevels category by this degree to find two back bevel cutters appropriate for this cyma recta crown moulding, these specific cuts set the installed height at 3-31/32" tall with a projection of 2-3/8" wide.
