Crown 4-5/8" - 13

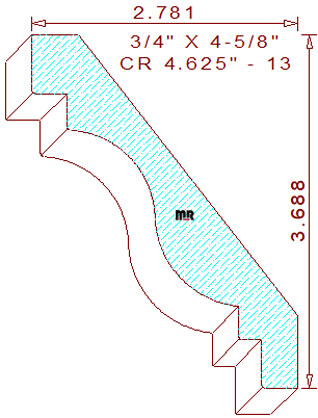

This attractive custom crown mould measures 4.625" in width by .750" in thickness, requiring 4-7/8" wide blanks of four-quarter lumber for machining sprung (laying horizontally flat) on a commercial moulder. The beautiful terminating pattern comprises a 5/8" tall vertical line joined to a 3/8" wide by 3/8" tall notch on the top left. It connects to a lovely two-tangent radius cyma recta in the center, attached to a 23/64" tall vertical line merged with a 1/2" tall by 3/8" broad squared lines on the design's bottom right corner. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-11/16" tall with a projection of 2-25/32" wide.
