Crown 4-19/32" - 6

Crown 4-19/32" - 6

Crown 4-19/32" - 6

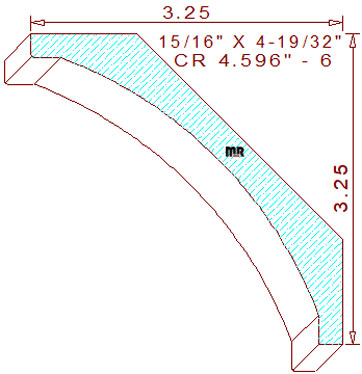

This concave 4-19/32" - 6 crown mould measures 4.596" width by .937" thickness, necessitating the use of a 4-13/16" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The embellishing symmetrical profile contains a 4-5/8" radius cove in the center. The concave semicircle connects to 5/16" by 1/4" tall and wide perpendicular lines on the design's upper left and lower right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-1/4" tall with a projection of 3-1/4" across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.715
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.715
Top Cutter Head
Width: 4.593
Depth of Cut: 0.613
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$320.84
Not Needed
Total:
$629.84
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$342.21
Not Needed
Total:
$670.21
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$195.00
$152.00
(Template not needed)
$363.58
Not Needed
Total:
$710.58
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
