Crown 4-1/2" - 7

Crown 4-1/2" - 7

Crown 4-1/2" - 7

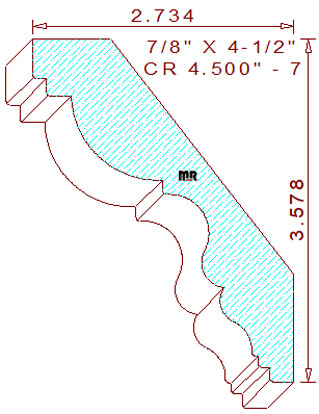

This attractive 4-1/2" - 7 crown mould measures 4.500" wide by .875" thickness. The ornate profile is comprised of a two-step notched fillet on top, connected to a 29/32" radius arc with a small vertical line, attached to two tangent radius cyma recta that transition into a cyma reversa and another smaller notch with a 1/4" horizontal line at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-37/64" tall with a projection of 2-47/64" wide. We offer two similar versions of this profile in different widths for your review and consideration, crown 3.000" - 12 and crown 3.500" - 27.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.638
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.690
Top Cutter Head
Width: 4.500
Depth of Cut: 0.524
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$305.50
Not Needed
Total:
$648.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$326.50
Not Needed
Total:
$688.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$347.50
Not Needed
Total:
$728.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
