Crown 4-1/2" - 32

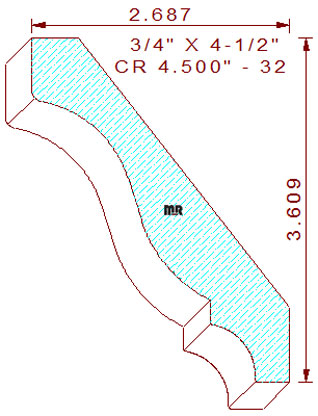

This standard 4-1/2" - 32 crown mould measures 4.500" wide by .750" thickness. The typical terminating profile comprises a 1-3/16" and 1-27/64" tangent radiuses creating cyma recta in the center, attached to a 43/64" tall vertical fillet on top and a 1/4" tall vertical fillet below, connected to a 35/64" radius cavetto with a 23/64" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees; search our bevels category by these degrees to find two back bevel cutters appropriate for this everyday crown design, these specific back bevels set the installed height at 3-39/64" tall with a projection of 2-11/16" wide.
