Crown 4-1/2" - 27
Crown 4-1/2" - 27

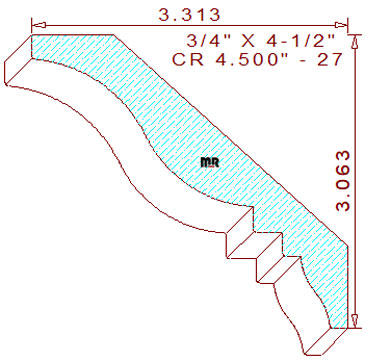

This delightful 4-1/2" - 27 crown mould measures 4.511" wide by .750" thickness, permitting the pattern to be machined sprung (laying horizontally flat) from four quarter lumber. The lovely terminating profile is comprised of a 1/4" tall line segment on the top left, joined to a graceful two tangent radius cyma recta in the center, connected to two sets of decorative stepped perpendicular lines, merged with a shallow two tangent radius ogee and a 13/64" horizontal line at the bottom right side of the design. The spring angles are fixed at
forty-two and
forty-eight degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3-1/16" tall with a projection of 3-5/16" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.637
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.578
Top Cutter Head
Width: 4.500
Depth of Cut: 0.398
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
