Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Crown 4-1/2" - 25

Crown 4-1/2" - 25

Crown 4-1/2" - 25

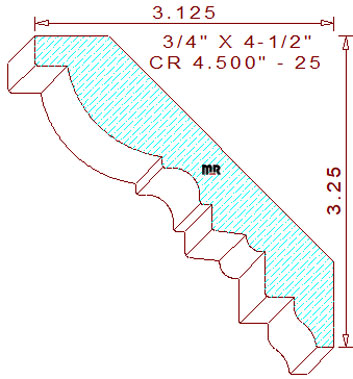

This ornate 4-1/2" - 25 crown mould measures 4.508" width by .750" thickness enabling the use of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial-grade molder. The elaborate terminating profile contains a 5/16" tall by 11/32" broad perpendicular lines joined to a 1-5/32" radius convex arc on the top left. The semicircle connects to a 9/32" cove flanked by horizontal and vertical line segments that connect to a series of squared lines with a recessed quart-round bead attached to a small ogee and a 3/16" flat line on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; in addition, they lock in the positioned height at 3-1/4" tall with a projection of 3-1/8" across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.544
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.631
Top Cutter Head
Width: 4.500
Depth of Cut: 0.332
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$128.25
(Template not needed)
$305.50
Not Needed
Total:
$595.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$137.75
(Template not needed)
$326.50
Not Needed
Total:
$635.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$147.25
(Template not needed)
$347.50
Not Needed
Total:
$675.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
