Crown 4-1/2" - 19
Crown 4-1/2" - 19

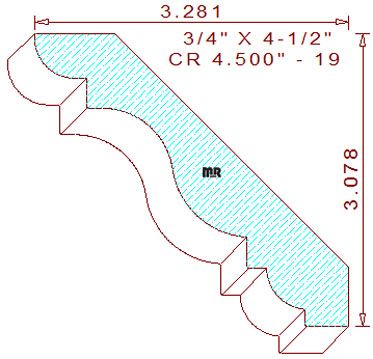

This designer 4-1/2" - 19 crown mould measures 4.500" wide by .750" thickness. The fancy supporting profile comprises a cyma recta in the middle flanked by a vertical fillet attached to a quarter-round bead on top; the lower portion of the pattern retains a stepped fillet connected to a beautiful ovolo. The spring angles are fixed at forty-five degrees, setting the installed height at 3-5/64" tall with a 3-9/32" wide projection.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.439
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.590
Top Cutter Head
Width: 4.500
Depth of Cut: 0.401
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
