Crown 4-1/2" - 17
Crown 4-1/2" - 17

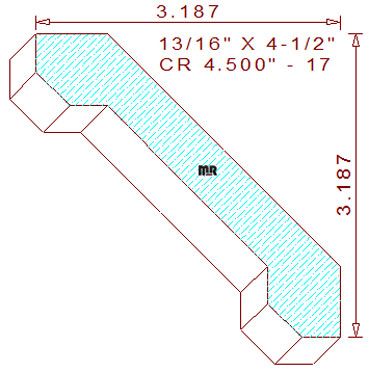

This shaker style 4-1/2" - 17 crown mould measures 4.500" wide by .813" thickness. The beveled profile comprises a combination of horizontal and vertical fillets connected by forty-five-degree lines working together to create this fashionable pattern. When installed, the spring angles are also fixed at forty-five degrees, setting identical dimensions at 3-3/16" in height and projection.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.527
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.527
Top Cutter Head
Width: 4.500
Depth of Cut: 0.356
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
