Crown 4-3/8" - 8

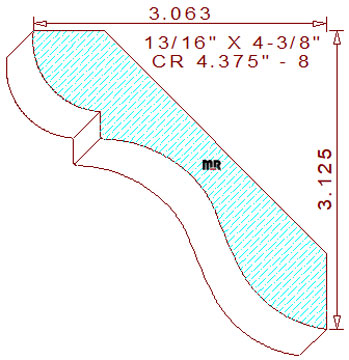

This 4-3/8" - 8 build-up crown mould measures 4.376" width by .813" thickness, permitting the use of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The classic supporting profile contains a 3/4" radius quarter round convex arc merged with a 9/32" tall vertical line segment on the top left. The remaining portion of the design consists of a three-tangent radius s-shaped curvature creating the cyma recta. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-1/8" tall with a projection of 3-1/16" across the top.

Architects, interior designers, contractors, lumber mills, cabinet shops, and manufacturers are utilizing our wide variety of moulding designs. We trust you will find that unique profile to enhance the architectural style of your client's home or office. Be sure to download all our free dxf files; see how easily the services we provide can increase productivity and reduce your manufacturing cost.
