Crown 4-3/8" - 7

Crown 4-3/8" - 7

Crown 4-3/8" - 7

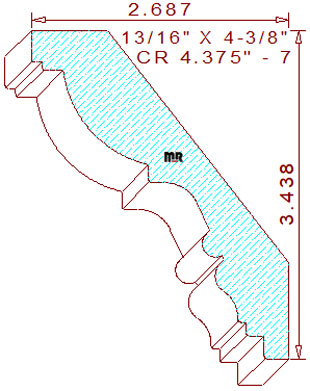

This distinguished 4-3/8" - 7 crown mould measures 4.363" width by .812" thickness, permitting the use of four-quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The ornate supporting profile contains many historically correct classic geometrical shapes. They include straight & horizontal fillets, an ovolo, a slanted congee, a half bead, and even a tiny cyma reversa in the lower right-hand portion of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-7/16" tall with a projection of 2-11/16" across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.624
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.623
Top Cutter Head
Width: 4.375
Depth of Cut: 0.445
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$299.25
Not Needed
Total:
$622.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$319.75
Not Needed
Total:
$662.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$340.25
Not Needed
Total:
$701.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
