Crown 4-3/8" - 5

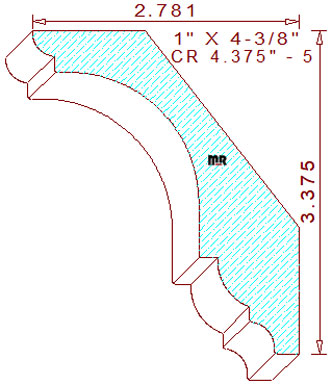

This visually enhanced 4-3/8" - 5 crown moulding measures 4.372" width by 1.000" thickness. The pattern will necessitate using five-quarter lumber for machining sprung (laying horizontally flat) on an industrial moulder. The concave-shaped supporting profile contains a 1/4" round connected to an 11/64" vertical line on the top left. The short line attaches to a 1-3/8" cavetto in the center merged to a 33/64" ovolo with a 17/64" cove and a 17/64" broad line segment on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-3/8" tall with a projection of 2-25/32" across the top.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking and a former Weinig field service technician.
