Crown 4-3/8" - 2

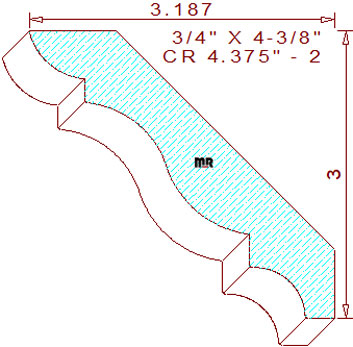

This sophisticated 4-3/8" - 2 crown mould measures 4.375" wide by .750" thickness, authorizing the pattern to be machined out of four-quarter lumber. The refined supporting profile is composed of a 41/64" convex semicircular arc and a 1/4" tall vertical fillet on the top left, connected to a smooth two tangent radius cyma recta with an 11/32" tall line segment in the center, attached to a 17/32" cove with a 5/16" wide horizontal segment on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3" tall with a projection of 3-3/16" wide.
