Crown 4-3/8" - 19
Crown 4-3/8" - 19

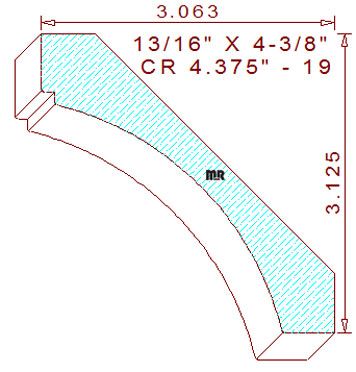

This concave 4-3/8" - 19 crown mould measures 4.375" wide by .812" thickness. The design consists of a large concave center, a notched fillet on top, and a fillet on the bottom, installed height equals 3-1/8" tall with a projection of 3-1/16" wide, the spring angles are fixed at forty-five degree. This cove/ crown could easily be flipped around and installed with the notched fillet on the bottom side, this would allow you to place a thinner moulding under it creating an elegant stepped design with easy transitions.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.397
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.441
Top Cutter Head
Width: 4.375
Depth of Cut: 0.541
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
