Crown 4-3/8" - 13
Crown 4-3/8" - 13

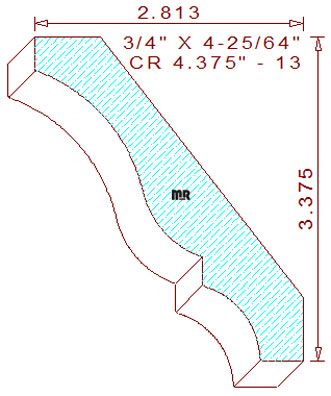

This standard 4-3/8" - 13 crown mould measures 4.391" wide by .750" thickness. The profile consists of a cyma recta flanked by two vertical fillets in the middle and a cavetto with an attached horizontal fillet at the bottom. When installed, the height becomes 3-3/8" tall with a projection of 2-13/16" wide with the spring angles fixed at thirty-eight and fifty-two degrees. Three points in the design are purposely positioned on the same level plane to create optimal hold-down conditions while milling the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.545
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.406
Top Cutter Head
Width: 4.375
Depth of Cut: 0.437
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
