Crown 4-3/8" - 10

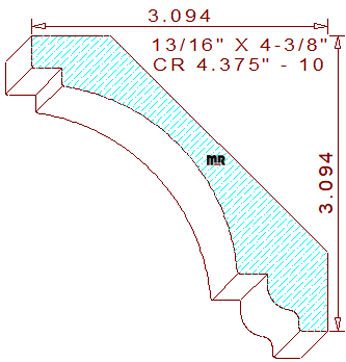

This concave 4-3/8" - 10 crown mould measures 4.375" wide by .812" thickness, allowing the detail to be milled sprung (laying horizontally flat) out of four-quarter lumber. The beautiful terminating profile is composed of an 11/32" tall vertical segment attached to a 5/16" wide by 3/16" tall notch on the top left. It's connected to a 2-9/64" cove with a 5/16" wide flat line in the center, joined to a two-tangent radius ogee with a 19/64" wide line at the bottom of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as setting the installed height and projection at an identical dimension of 3-3/32" tall and wide.
