Crown 4-9/32" - 3
Crown 4-9/32" - 3

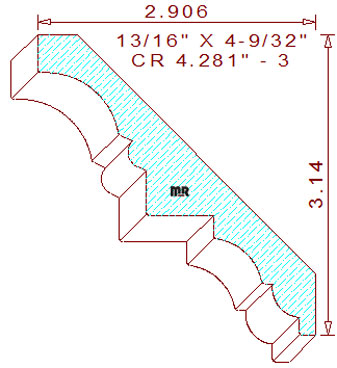

This ornate 4-9/32" - 3 crown mould measures 4.281" wide by .812" thickness. The terminating profile comprises two cavettos, a half-round bead, vertical and horizontal fillets, and an ovolo positioned at the bottom of the pattern. The spring angles are fixed at forty-five degrees; these specific bevels set the installed height at 3-9/64" tall, with a projection of 2-29/32" wide. Search our
bevels category by degree for a set of back bevel cutters appropriate for this stylish crown design.<
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.292
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.456
Top Cutter Head
Width: 4.281
Depth of Cut: 0.613
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
