Crown 4-1/4" - 68

Crown 4-1/4" - 68

Crown 4-1/4" - 68

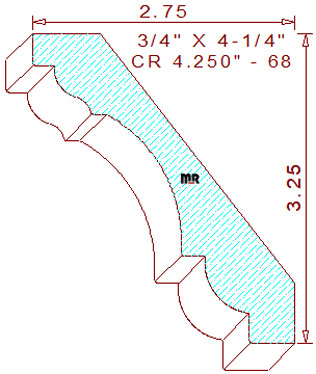

This beautiful 4-1/4" - 68 crown mould measures 4.250" wide by .750" thickness. The elegantly designed terminating profile is comprised of 11/32" tall by 15/64" broad squared lines on top, connected to a small two tangent radius cyma reversa with 1/8" broad line that transitions into a 1-31/64" radius cove in the center, joined to a 17/32" ovolo flanked by a 1/4" wide and a 5/16" tall, straight line with a 31/64" broad segment at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-1/4" tall with a projection of 2-3/4" wide. We offer a few other sizes in our molding catalog, here is just one that is relatively close in size to this pattern for your review and consideration, crown 5.000".

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.556
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.556
Top Cutter Head
Width: 4.250
Depth of Cut: 0.459
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$293.00
Not Needed
Total:
$573.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$313.00
Not Needed
Total:
$612.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$333.00
Not Needed
Total:
$651.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
