Crown 4-1/4" - 64
Crown 4-1/4" - 64

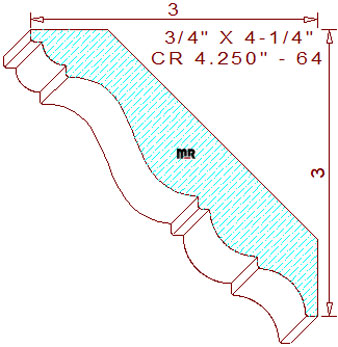

This custom 4-1/4" - 64 crown mould measures 4.250" wide by .750" thickness. The elegant profile is comprised of a 1/4" radius ovolo flanked by 1/8" lines at the top, connected to two tangent radius cyma recta joined to 1/8" by 1/8" squared lines, attached to another larger ovolo made from a 15/32" arc also flanked by 1/8" lines, merged with a 1/2" cove and a 1/8" wide horizontal line at the bottom of the design. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height at 3" tall with a projection of 3" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.587
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.587
Top Cutter Head
Width: 4.250
Depth of Cut: 0.289
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
