Crown 4-1/4" - 63
Crown 4-1/4" - 63

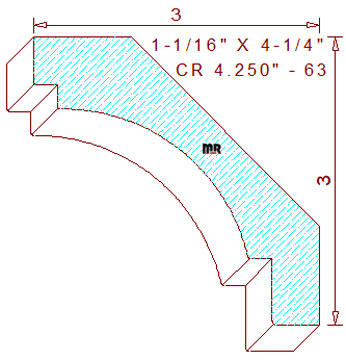

This stylish 4-1/4" - 63 concave crown mould measures 4.250" wide by 1.062" thickness. The beautiful profile is comprised of a large 2" radius cove in the center, connected to a 1/4" wide by 1/4" tall notch and a 1/2" tall vertical line at the top, the bottom portion consists of a 1/4" wide by 11/16" tall notch joined to a 1/2" broad segment at the bottom of the design. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height at 3" tall with a projection of 3" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.726
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.726
Top Cutter Head
Width: 4.250
Depth of Cut: 0.605
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.25
(Template not needed)
