Crown 4-1/4" - 62
Crown 4-1/4" - 62

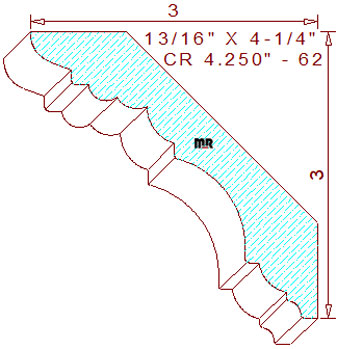

This ornate 4-1/4" - 62 crown mould measures 4.250" wide by .812" thickness. The intricate profile is comprised of a series of different-sized cascading quarter and half-round semicircular beads in the upper portion, connected to a 31/32" concave circle in the center flanked by a small vertical and horizontal line, joined to a 3/8" ovolo and a 9/64" cove with an 11/64" broad straight line at the bottom of the design. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height at 3" tall with a projection of 3" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.706
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.706
Top Cutter Head
Width: 4.250
Depth of Cut: 0.410
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.25
(Template not needed)
