Crown 4-1/4" - 59
Crown 4-1/4" - 59

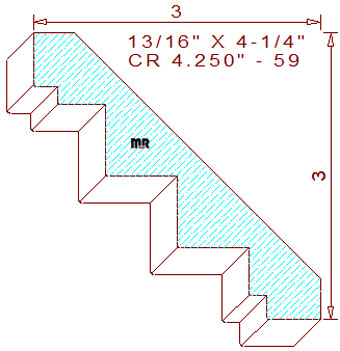

This southwestern style 4-1/4" - 59 crown mould measures 4.250" wide by .812" thickness, allowing the pattern to be milled from four-quarter lumber. The symmetrical stepped profile is comprised of a 3/4" wide by 3/4" tall notch in the center, flanked by a 3/4" by 1/2" step that joins to a 3/16" by 1/4" squared lines with a 9/16" broad tall and wide line at the top and bottom of the design. The spring angles are fixed at
forty-five degrees, these dedicated back bevels set the installed height and projection at an identical dimension of 3" tall and wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.299
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.299
Top Cutter Head
Width: 4.250
Depth of Cut: 0.607
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
